24' ATC Car Hauler | 2023 Quest Limited

THE ATC CAR HAULER HAS UN-MATCHED DURABILITY AND CORROSION RESISTANCE. Nobody comes close – nobody! It also has the strongest and widest ramp door in the industry. the most available space for all your toys!

IN STOCK!!

Price reflects an IWS Instant Rebate of $4,800 and an ATC $2,000.00 manufacture’s mail-in rebate due at signing on 2022 ATC Car Haulers valid for a limited time only.

Retail Price: $55,500

Less ATC Mail-In Rebate: -$2,000

Less IWS Instant Rebate: -$4,800

Your IWS Price: $48,700

COLOR: WHITE
COLOR REAR: WHITE
CABINET COLOR: BLACK
WALL COLOR: WHITE
CEILING COLOR: WHITE

Standard Frame Features

(2) 6,000 LB TORSION AXLES (APPRIMATELY 13.25″ GROUND CLEARANCE – UNLOADED)
A-FRAME COUPLER WITH 10,000 LB. 2 5/16″ BALL HITCH
16″ ON-CENTER FLOOR CROSSMEMBERS
1″ X 3″ ALUMINUM ROOF CROSSMEMBERS @ 16″ ON-CENTER
1″ X 1.5″ WALL CROSSMEMBERS @ 16″ ON-CENTER
BEAVERTAIL FLOOR DESIGN
5″ ALUMINUM FRAME
FULL PERIMETER ALUMINUM FRAME
SKID PLATES FRAME PROTECTION
(4) ST225/75R15/LRE RADIAL TIRES ON ALUMINUM WHEELS WITH STAINLESS STEEL LUGNUTS
12″ EXTENDED TRIPLE TUBE TONGUE
7-WAY TRUCK/ TRIALER CONNECTOR

Standard Exterior Features

POLAR WHITE EXTERIOR COLOR
AWNING RAIL
SCREWLESS ALUMINUM EXTERIOR WALLS
.040 EXTERIOR ALUMINUM WALL
(4) POLISHED ALUMINUM FENDERETTES
24″ ATP GRAVEL GUARD WITH J-RAIL
ONE PIECE ALUMINUM ROOF
PERIMETER SKIRTING WITH REVERSE BEAVERTAIL
POLISHED STAINLESS STEEL /CAST CORNERS
POLISHED STAINLESS STEEL VERTICAL TRIM INCLUDING FRONT & TOP RADIUS
STAINLESS STEEL HEADER & REAR TRIM
POLISHED STAINLESS STEEL REAR VERTICALS
4″ ALUMINUM UPPER TRIM/RUB RAIL
VENT ROOF MANUAL 14″ W/MAXXAIR COVER
VENT SYSTEM -TWO WAY -SALEM- BLACK

Door and Window Features:

PREMIUM REAR RAMP DOOR WITH CONTINUOUS ALUMINUM HINGE (2400 LB RATED MAX LOAD – 4000 LB VEHICLE LOAD)
COLOR MATCHED REAR RAMP DOOR
16″ EXTRUDED ALUMINUM TRANSITION FLAP
STAINLESS STEEL PADDLE LATCH SYSTEM
TRANSITION FLAP -TPO-BLACK COIN -16’L
DOOR ENTRANCE – 405 SERIES 36″ x 78″ FLUSH LOCK RIGHT HINGE
STEP SLIDE IN/OUT ALUMINUM 36″

Added Exterior Options

88″ X 66″ PREMIUM ESCAPE DOOR (TOP HINGED) WITH REMOVABLE WHEEL WELL **ADDED OPTION
- ONE PIECE REMOVABLE INTERIOR WHEEL WELL
- EXTERIOR FENDERETTES INTEGRATED INTO DOOR
- (2) 140 LB DOOR ASSIST GAS SHOCKS
- (2) PROP RODS

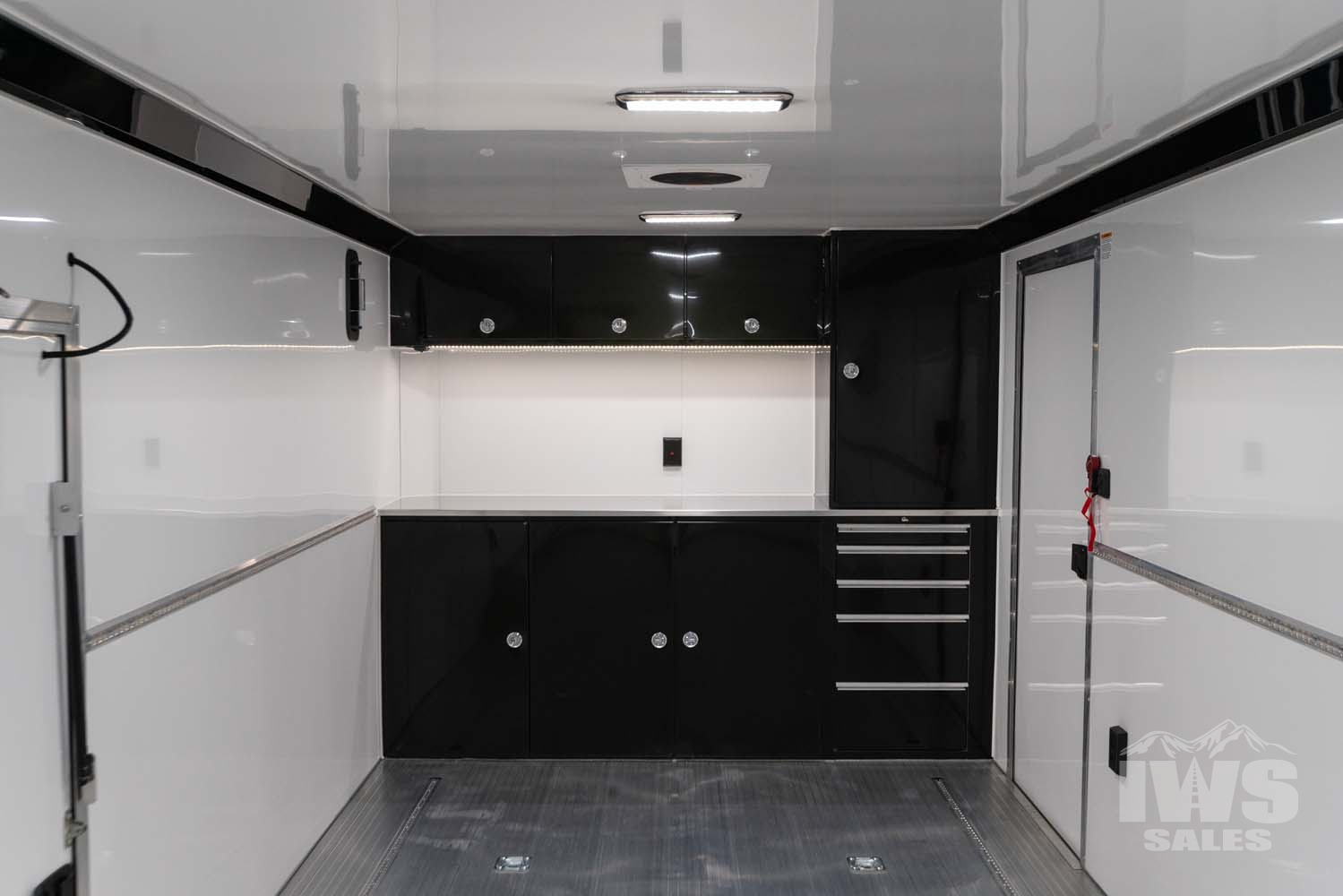

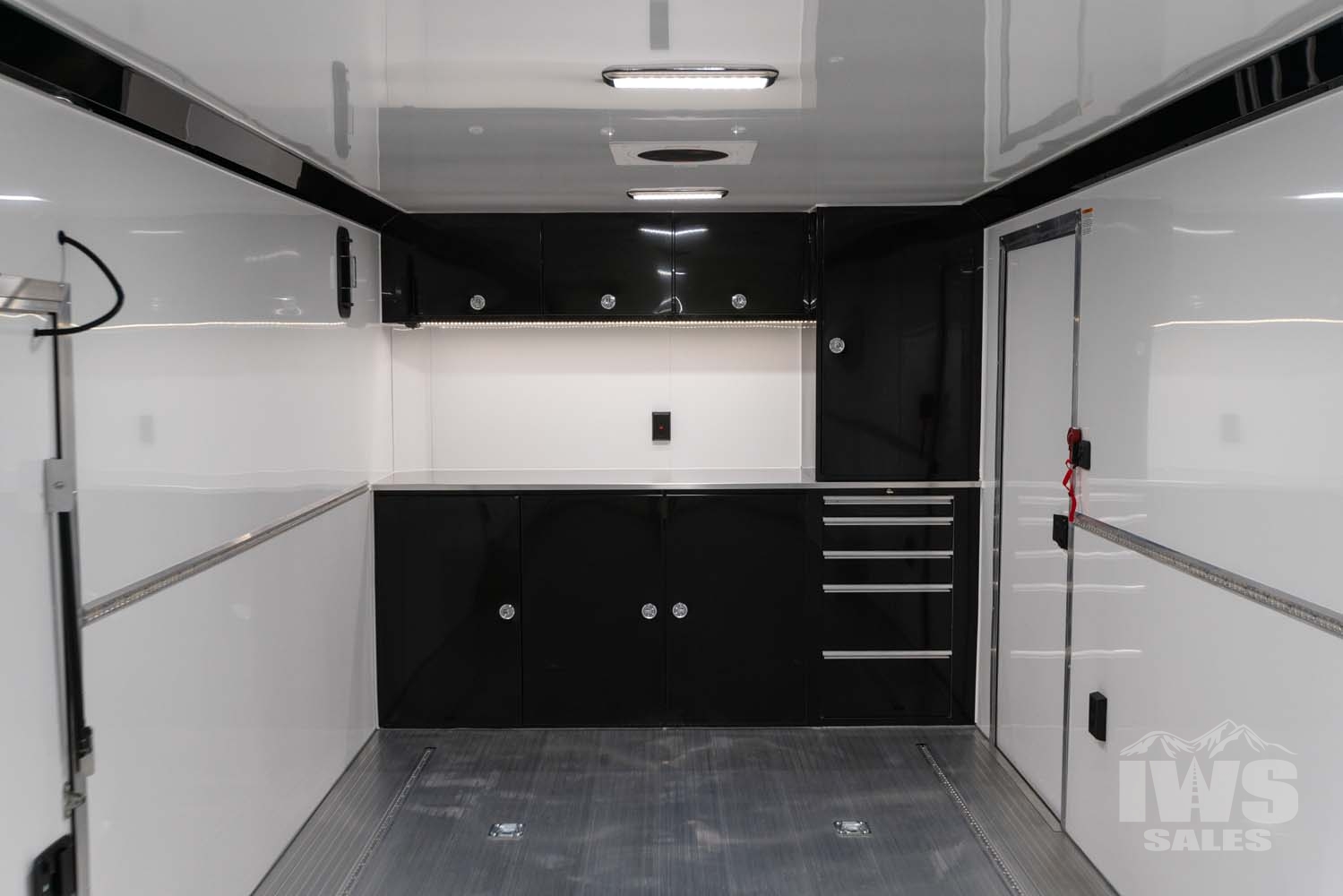

Standard Interior Features

7′ INTERIOR CEILING HEIGHT
24″ DEEP UPPER & LOWER CABINETRY (SILVERFROST)
ALUMINUM COUNTERTOP SURFACE (LOWER CABINETS)
SCREWLESS ALUMUNUM INTERIOR CEILING (POLAR WHITE)
FLOORING TPO- BLACK COIN
INTERIOR COVER & SPRING BOX (BLACK)
SCREWLESS ALUMINUM INTERIOR WALLS (POLAR WHITE)
(4) 5,000 LB RECESSED D-RINGS

Added Interior Options

EXTRUDED ALUMINUM FLOORING **ADDED OPTION
CABINET CONFIGURATION PKG 4 STRAIGHT LOWER, UPPER, 5-DRAWERS, CLOSET- COLOR: BLACK ** ADDED OPTION
UNDER UPPER CABINET: LED STRIP LIGHT WITH 12V SWITCH-BLACK** ADDED OPTION
AIRLINE TRACK-RECESSED-FLOOR-DOUBLE ROW ** ADDED OPTION
AIRLINE TRACK -SURFACE MOUNT-WALL ** ADDED OPTION
5000LB WINCH W/ 50′ SYNTHETIC ROPE & WIRELESS REMOTE ** ADDED OPTION
SPARE TIRE/WHEEL -ST235/80R16/LRE- RADIAL ON ALUMINUM ** ADDED OPTION
- NITRO FILLED WHEELS
- SPARE TIRE MOUNT- INTERIOR WALL – 8 LUG

Standard Electrical Features

12V AGM BATTERIE
INTELLI-POWER 60A CONVERTER/50A BREAKER BOX WITH 12 V FUSE PANEL
MANUAL POWER CUT-OFF SWITCH (12V)
50A MOTORBASE POWER INLET WITH 25′ SHORE CORD
(4) AMBER LOWER LED CLEARANCE LIGHTS
(4) AMBER UPPER LED CLEARANCE LIGHTS
(2) RED LOWER LED CLEARANCE LIGHTS
(7) RED UPPER LED CLEARANCE LIGHTS
(2 PAIR) RED LED SLIMLINE TAILIGHTS
(2) HIGH OUTPUT CURBSIDE LED SCENE LIGHTS WITH CHOME BEZELS WITH WALL SWITCH
(3) INTERIOR 120V/15A POWER RECEPTACLES
EXTERIOR 120V/15 GFI POWER RECEPTACLE
(4) RECESSED 14″ INTERIOR LED CEILING LIGHTS WITH (2) WALL SWITCHES
WINCH PLATE INSTALLED UNDER FLOOR FOR FUTURE MOUNTING

Added Electrical Options

LIGHT – DOCKING – LED – STAINLESS STEEL – 12V ** ADDED OPTION

This 2023 ATC Quest Car Hauler comes with the IWS Advantage Package!

Advantage Package

Exclusive 1 on 1 training on how to secure your vehicle in your new trailer
Free trailer washes when you stop by (Maximum of 5 total)
10% off all vehicle tie down equipment at time of trailer purchase.
Priority service treatment on emergency trailer repairs. (At our location)

2D Floorplan/Drawing

3D Floorplan

This Floor plan may show optional features that are not on every unit.

*Please note that due to changes at factory, specifications, dimensions, features, and options may change at anytime without notice*

Length Condition	24′
Overall Length (ft)	28.25
Overall Width (in)	102″
Overall Height (ft)	9’6″
Interior Length (ft)	24′
Interior Width (in)	97″
Interior Height (ft)	7′
Deck Height (in)	20″
Rear Opening Width (in)	90″
Rear Opening Height (in)	84″
Tongue Length to Center of Ball (in)	43.5″
Width Between Wheel Wells (in)	81″
Axle Type	Dexter Torflex Torsion
Axle Rating (lb)	5,200 lb
Axle Quantity	Tandem
GVWR (lb)	9,990 lb
Brakes	4 Wheel Electric
Tire Size	225/75R15
Hitch Height To Top of Ball (in)	19″
Hitch Ball Size (in)	2-5/16″
Curb Weight Estimated* (lb)	3,425 lb

Due to continued improvement, changes in suppliers and design; features, options, appliances, equipment, colors, material specifications, prices, and model availability are subject to change without notice.
