PRO 300C Office or Command Trailer

Standard Frame Features

• (2) 5,200 LB TORSION -EZ LUBE HUBS- ELECTRIC BRAKES
  • GROUND CLEARANCE: RAISE APPROX. 3” FROM STANDARD
• AXLE SPACING – SPREAD AXLE
• A-FRAME COUPLER WITH 10,000 LB. 2 5/16″ BALL HITCH
• 16″ ON-CENTER FLOOR CROSSMEMBERS
• 1″ X 3″ ALUMINUM ROOF CROSSMEMBERS @ 16″ ON-CENTER
• 1″ X 1.5″ WALL CROSSMEMBERS @ 16″ ON-CENTER
• FLOOR DESIGN – FLAT
• FRONT DESIGN – FLATE
• 5″ ALUMINUM FRAME
• FULL PERIMETER ALUMINUM FRAME
• SKID PLATES FRAME PROTECTION
• (4) ST225/75R15/LRE RADIAL TIRES ON ALUMINUM WHEELS WITH STAINLESS STEEL LUGNUTS
• 12″ EXTENDED TRIPLE TUBE TONGUE
• 7-WAY TRUCK/ TRIALER CONNECTOR
• BACKER – TV – AL – 0.125″ – WALL
• FRAMING – BATHROOM -S2 – FLAT FRONT
• FRAME OUT – FOR FUTURE ACCESS DOOR
  • WARNING: DONT NOT ROUTE INTERIOR OR EXTERIOR METAL
• TONGUE COVER – ATP
  • BACKER – AL – TUBE 1″ x 3″ – SPARE TIRE

Standard Exterior Features

• POLAR WHITE EXTERIOR COLOR
• SCREWLESS ALUMINUM EXTERIOR WALLS
• .030 EXTERIOR ALUMINUM WALL
• (4) POLISHED ALUMINUM FENDERETTES
• 24″ ATP GRAVEL GUARD WITH J-RAIL
• ONE PIECE ALUMINUM ROOF
• STAINLESS STEEL HEADER & REAR TRIM
• COLOR MATCHED REAR HEADER VERTICALS

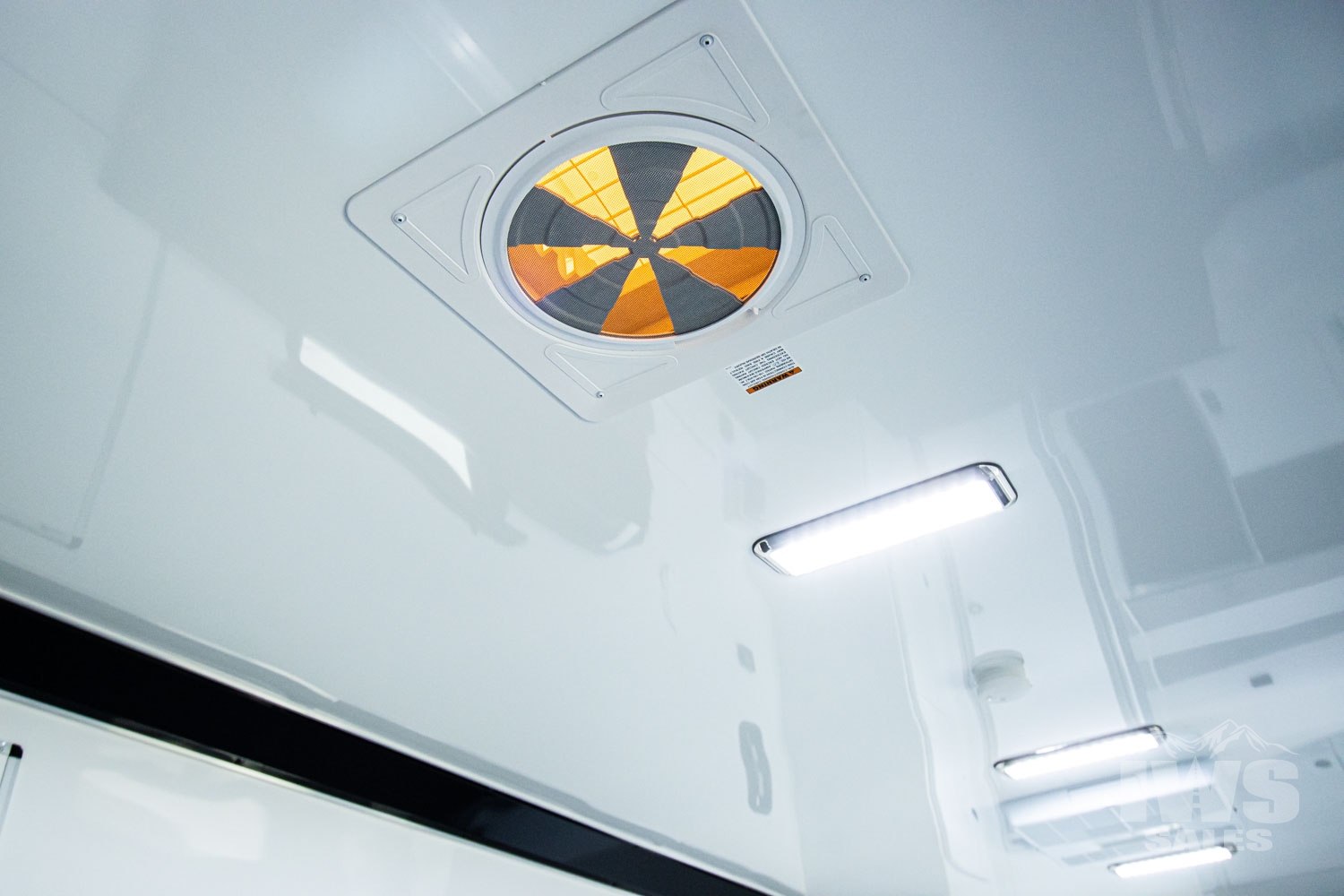

• VENT – ROOF – MANUAL – 14″ – W/ PREMIUM COVER
• VENT – ROOF – 12V – INCLUDES: SWITCH – BLACK – BATTERY NOT INCLUDED
• VENT SYSTEM – TWO WAY – SALEM – BLACK
• WINDOW – EGRESS – FRAMELESS – 30″W X 20″H – ROLL UP NIGHT SHADE – ROADSIDE
• WINDOW – FRAMELESS – 42″W X 32″H – ROLL UP NIGHT SHADE – CURBSIDE
  • INTERIOR HEIGHT – 7.5′
  • INTERIOR CEILING – SCREWLESS ALUMINUM
    • CEILING COLOR: POLAR WHITE
    • COVE, SPRINGBOX COLOR: BLACK
• INTERIOR WALLS – SCREWLESS ALUMINUM – OVER SUB WALL MATERIAL – 3/8″ – COLOR: POLAR WHITE
• INSULATION – CEILING – FIBERGLASS BATTEN – R-11
• INSULATION – WALLS – CLOSED CELL – R-13
• FLOORING – TPO – GRAY COIN

DOORS:

• REAR RAMP
  • 2400LB MAX LOAD
  • 4000LB VEHICLE LOAD
• RAMP DOOR EXTERIOR COLOR MATCHED
• TRANSITION FLAP- GRAY COIN 16”L
• DOOR LATCH- BAR LOCK- ALUMINUM
• HASP -STAINLESS STEEL – FOR CAM BARS/BAR LOCKS ON RAMP DOOR
• DOOR ENTRANCE – 405 SERIES -32 ” X 78″ TINTED WINDOW -FLUSH LOCK
• DOOR LATCH – BAR LOCK – OFFSET- ALUMINUM – FOR ENTRANCE DOOR
• STEP – SLIDE IN/OUT – NON SLID GRID – ALUMINUM – 32″
• HASP – STAINLESS STEEL – FOR CAM BARS/BAR LOCKS ON ENTRANCE DOOR
• GAS SHOCK ON ENTRANCE DOOR
• DOOR ACESS – 405 SERIES – 46″ X22″ – TOP HINGE
• DORR INTERIOR – 405 SERIES -22″ X 78″

PLUMBING:

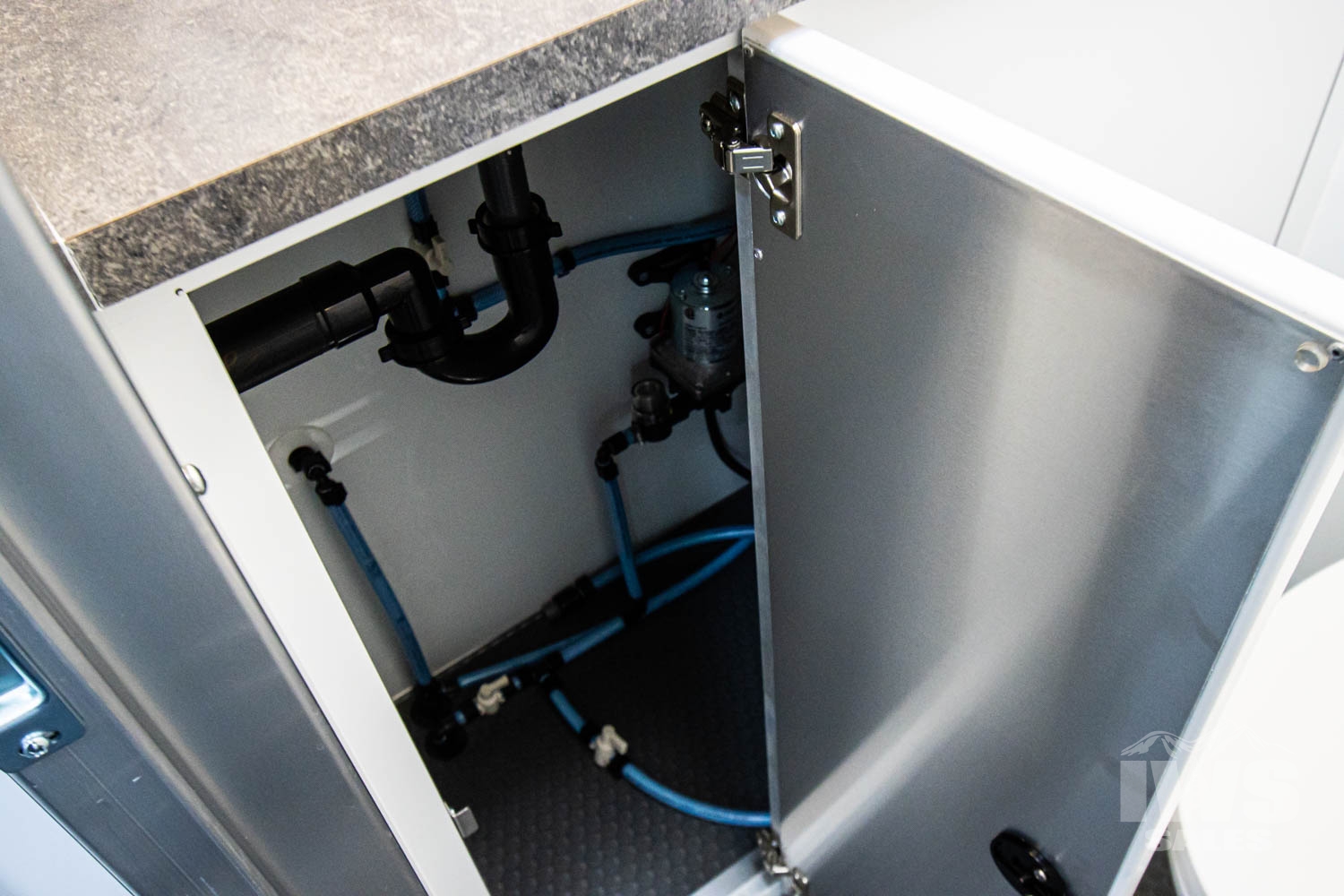

• SINK – SINGLE BOWL – OVAL – STAINLESS STEEL – 13.25″ X 10.5″ X 5″ – W/ FAUCET
• PLUMBING – THREE SEASON – HEATERS – (2) TANK AND LINE SYSTEM
  • INCLUDES: LIGHTED ROCKER SWITCHES COLOR: BLACK
• TOILET – RV STYLE
• SEWER HOSE AND HOLDER – 10′
• WATER PUMP – 3.0 GPM – 12V – W/ WINTERIZING TAP – SWITCH COLOR: BLACK
• TANK – WATER – FRESH – 48 GALLON
• TANK – WATER – BLACK – 42 GALLON
• MONITOR PANEL – 2 TANK, BATTERY, WATER PUMP SWITCH – WHITE
• WATER – CITY AND GRAVITY FILL

Standard Electrical Features

• BREAKER BOX – 50 AMP – 120V ONLY – 60 AMP CONVERTER – 12V FUSE PANEL – INTELI-POWER UNIT
• BATTERY – 12V AGM
• SWITCH – POWER CUT-OFF – MANUAL – 12V
• TRUCK PLUG – 7 WAY – BUMPER PULL

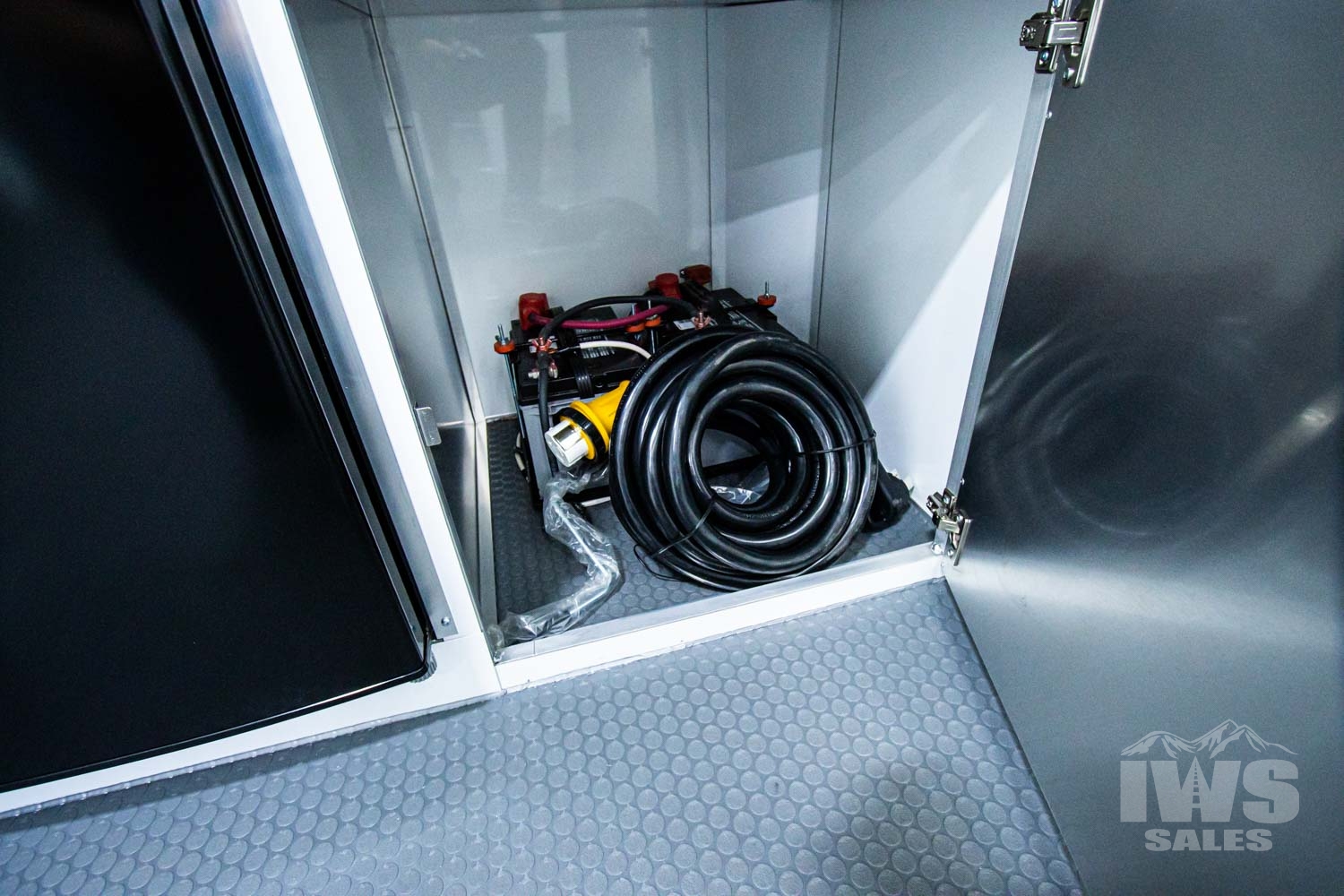

• POWER INLET – MOTORBASE – 50A – BLACK – W/ SHORE CORD – 25′
• (2 )LIGHT – CLEARANCE – LED – 12V – AMBER – LOWER
• (4) LIGHT – CLEARANCE – LED – 12V – AMBER – UPPER
• (2) LIGHT – CLEARANCE – LED – 12V – RED – LOWER
• (2) LIGHT – CLEARANCE – LED – 12V – RED – UPPER
• LIGHT – TAILLIGHT – SLIMLINE – LED – 12V – RED
• LIGHT – SCENE – LED – HIGH OUTPUT – 12V – SURFACE MOUNT – 14″ X 2.5″
  • SWITHC – WALL – 12V
  • USED FOR: EXTERIOR SCENE LIGHTS
  • COLOR BLACK
• LIGHT – LOADING – LED – 12V – EXTERIOR
  • SWITCH – WALL – 12V
  • USED FOR – LIGHT LOADING – LED – 12V – EXTERIOR
  • COLOR BLACK
• RECEPT – INTERIOR – 120V – 15A – BLACK
• RECEPT – INTERIOR – 120V – 15A – USB – BLACK – INCLUDED 2 USB CHARGING PORTS
• RECEPT – INTERIOR – 120V – 20A – DEDICATED – BLACK
• RECEPT – EXTERIOR – 120V – 15A – GFI PROTECTED
• LIGHT – DOME – LED – 12V – NON RECESSED
  • SWITCH -WALL – 12V
  • USED FRO: LIGHT – DOME – LED- 12V – NON RECESSED
  • SWITCH COLOR BLACK
• LIGHT – RECTANGULAR – LED – 14″ – 12V – SURFACE MOUNT
  • SWITCH – WALL – 12V
  • COLOR: BLACK

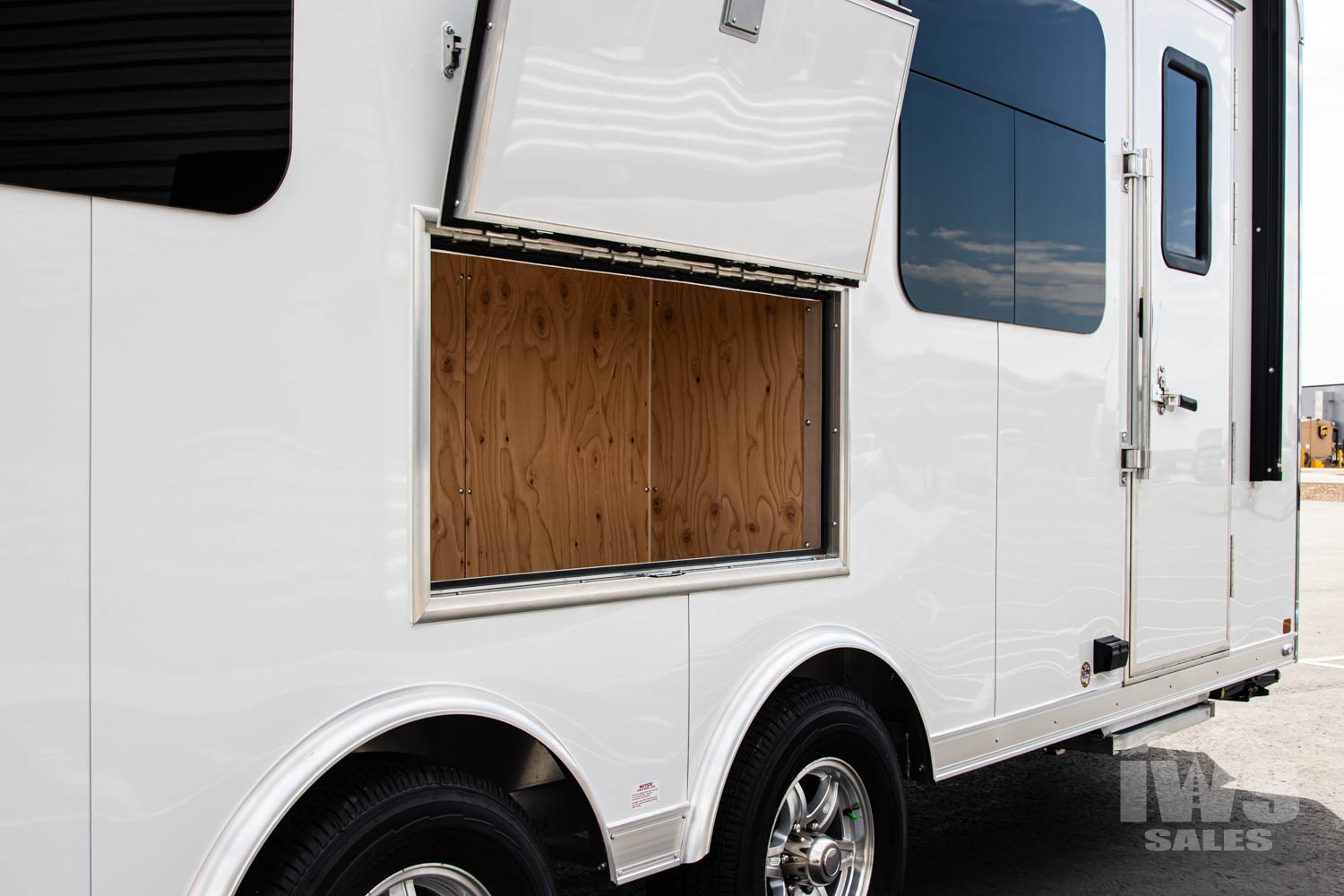

• STORAGE COMPARTMENT – TONGUE MOUNTED – ATP
• EXPANDED METAL ON FLOOR OF COMPARTMENT
  • INCLUDES 405 SERIES DOUBLE DOORS – VENTED
  • INCLUDES: GALVANIZED LINER FOR FRONT WALL OF TRAILER ONLY
• TRANSFER SWITCH – AUTO – 50A

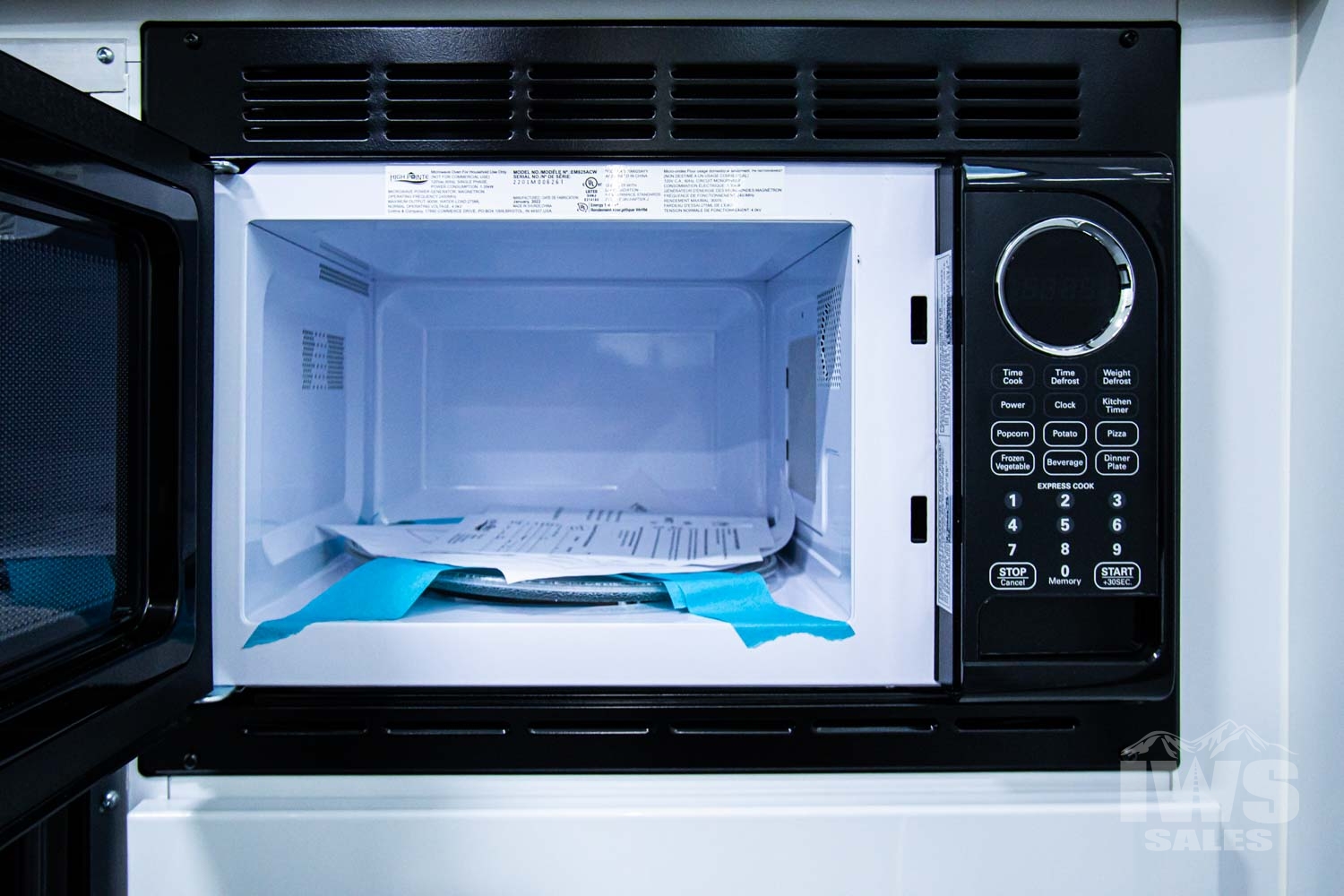

• MICROWAVE – 0.9 CU. FT. – 900W – OVEN
  • MICROWAVE – 0.9 CU. FT. – 900W – OVEN
• REFRIGERATOR – 4.4 CU. FT. – 120V RESIDENTIAL
  • 15A RECEPT – DEDICATED – 120V
• A/C – 15,000 BTU – BLACK – W/ BLACK THERMOSTAT
• A/C PREP – BRACE & WIRE
• HEATER – WALL MOUNT – 120V – 1500W – 5120 BTU – ELECTRIC – CHROME GRILL
