2023 43' IWS Signature Series™ Renegade XL

IWS Sales is proud to offer this IWS custom designed Renegade XL Motorcoach!

IWS Sales has always tried to keep our customers at the forefront of technology and safety. Over 25 years in this business has taught us that designing and building the best we can is the key to not only our success – but our customer’s success as well. With all that being said, we are proud to offer this IWS custom designed Renegade XL Motor Coach built on the New & Industry Leading Freightliner Cascadia truck chassis that is protected by Collison Mitigation System. We designed this Mid Entry Floorplan on a Freightliner Cascadia with a 600HP Detroit DD13 Engine and backed it with an Allison 4000 Series Automatic Transmission. At 43 ft, this coach will drive and perform exceptionally well. With Gross Combined Weight rating of 80,000 lbs you know you have the chassis to tow about anything you want. This coach will not only have incredible power, it also will have unbelievable braking coupled with an advanced Collison Mitigation System. This is all there to support and enhance the usability, quality and craftsmanship of the Renegade Conversion.

Give us a call, and we can tell you even more about it, and the process for making it your coach. See you out on the road!

Standard Chassis Features

IWS Signature Series™ Freightliner Cascadia P4-126
600hp DD16 Detroit 1,850 ft. lb. Torque
4000 Series 6 Speed Allison Automatic Transmission
Disc Brakes
80,000 lb. GCWR Tandem Drive
Includes the Collision Mitigation System, Adaptive Cruise Control and Lane Departure Warning.
30,000lb Adjustable Hitch With 2-5/16″ Ball (5,000lb Tongue Rating)
Electric Brake Controller with Digital Display

Note – “Chassis Specs” Are Subject to Change Without Notice

Standard Exterior Features

X43DB XL Motorhome – 1 1/2 Bath-Mid Entry-Quad Slide
Front Aero Cap (Walk-In) with Full Body Rear Cap
Keyless Entry for Front Entry Door Includes Key Fob
Side Swing Baggage Doors with Strut Assist
Power Locking Storage Compartment Doors
L.E.D Storage Compartment Lights
Spray Bed liner in all Cargo Boxes (Gray Color)
4-Point Auto Leveling System- Hyd Up and Down
Electric Brake Controller with Digital Display
30,000lb Adjustable Hitch With 2-5/16″ Ball, 2″ Reducer, and Pintle Lock (5,000lb Tongue Rating) Tandem Axle Only
3/4 Pass Thru Storage Compartment on Curb Side Behind Rear Axle

Paint and Appearance:

Renegade 4 Color XL Paint Package Double Clear Coat – Solstice: Blue/Gray/Silver (Metallic)
Paint Chip Protection For Bumper Hood Front and Fender Fronts
Undercoat Entire Underside of Coach with Rubberized Coating
Stainless Steel Accents On Rear Of Coach
Full Width Mud Flap With Stainless Anti-Sail

Awnings:

Dual Roof Mounted Lateral Arm Awnings with LED lighting and Wind Sensor (Dual Stage)
Slide Topper Awnings Over Each Slide Out

Windows:

Optional All Wood Valances Classic Style No Décor Top
Bonded Thermopane Frameless Windows Tilt Out with Screen

Added Exterior Options

Add Gen-Y Torsion Adjustable Flex Hitch Receiver in lieu of Fixed Hitch **IWS Added Option
- (6,000 lb Tongue Weight Rating)
IWS Outside Lighting Package
- (5) High Intensity Exterior L.E.D Light Package Each Group is Switched Independently with Hi/Lo Settings **IWS Added Option
- (2) Lights Driver Side (2) Lights Passenger Side
- (1) Light Rear of Coach
Exterior LED Accent Lights Under Slide outs (Color Changing)**IWS Added Option
Underbody Exterior LED Accent Lights (Color Changing)**IWS Added Option

Windows:

Window in Kitchen Slide 30″ X 20″ **IWS Added Option
Skylight over Shower**IWS Added Option
Chassis Cab Window Tint Side Windows**IWS Added Option
Picture Window Over Sofa Non Opening 48″ x 24″ (With Overhead Storage)**IWS Added Option
Picture Window Over Dinette Non Opening 48″ x 24″ (With Overhead Storage)**IWS Added Option
Remote Operated Night Roller Shades Manually Operated Day Roller Shades**IWS Added Option
Window in Galley Slide Out in Kitchen Area **IWS Added Option

Standard Interior Features

7′ 6″ Ft” Interior Height (90″)
Cab Rail Privacy Curtains
Flat Panel Wainscoting with Smooth Vinyl Fabric Padded Walls

Furniture:

Dream Dinette Booth with Solid Surface Table Top
Ultra Leather Upgrade Package for All Furniture
Driver and Passenger Captains Chairs with Arm Rest
(Black in Color)
Driver / Passenger Seat Base Swivel (Standard Option for Cascadia Chassis)
Small King Bed 66″ x 80″ With Memory Foam

Cabinets:

Maple Hardwood Cabinets with Optional Stained Satin Finish
Dove Tail Construction on All Drawers
Renegade Style Pantry
- (2) Large Item
- (2) Small Item Slideout Drawers in Pantry Cedar Lined Rear Closet

Flooring:

Honed Porcelain Tile Entire Coach Living Quarters – Kitchen – Bathroom – Bedroom
Solid Surface Entry Steps / Stepwell
Removable Automotive Cab Floor Liner

Counter Tops:

Polished Solid Surface Countertops – Similar to Corian (Bedroom, Kitchen, Bath, Dinette, and Nightstands)
Tiled Back Splash from Counter to Cabinets and Wrap Along Pantry

Appliances:

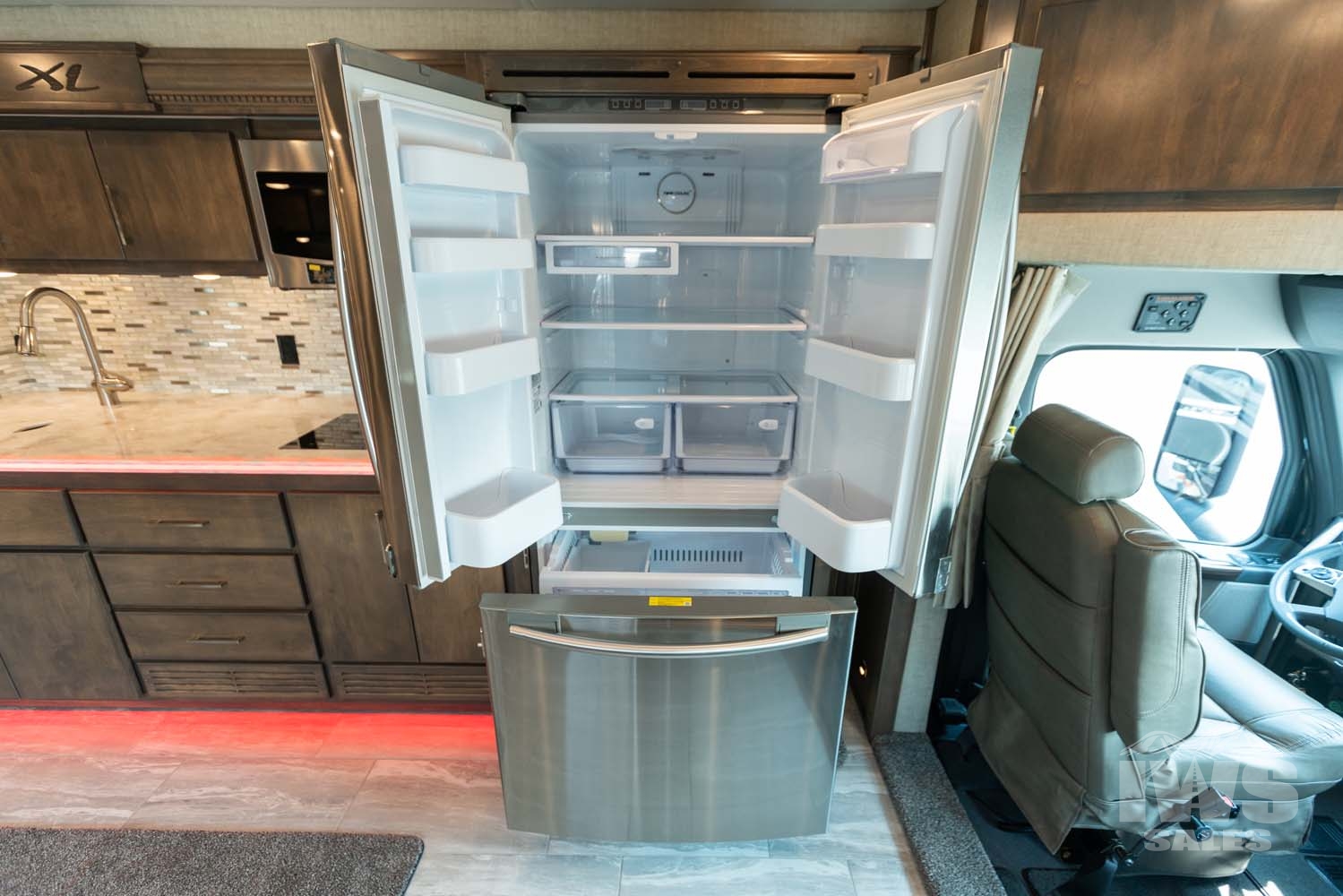

22 cu ft. Counter Depth Samsung Refrigerator with Ice Maker in Lower Freezer
(Black S.S.Finish)
1.7 Cu Ft Samsung Convection Microwave Black Stainless Steel
Outside Refrigerator Prep Package (eletrical only)
Recessed 2-Burner Induction Cooktop with Covers

Added Interior Options

Wood Trimmed Full Length Mirror in Bedroom **IWS Added Option

Furniture:

Theatre Seating in lieu of Hide-a-Bed Sofa **IWS Added Option
Add Manual Lumbar To Driver and Passenger Captains Chairs **IWS Added Option

Cabinets:

Epic – Slab Style Smooth Face Cabinet Doors **IWS Added Option

Flooring:

Electric Heated Tile Flooring Entire Coach (2) Heating Zones **IWS Added Option

Appliances:

Washer & Dryer Stacked**IWS Added Option
Central Vacuum System**IWS Added Option

Standard Water system Features

Bone Colored Macerator Toilet (Electric Flush)
150 Gallons Fresh Water Storage Tank Located Under Bed
75 Gallon Gray Waste Storage Tank & 75 Gallon Black Waste Storage Tank.
Whole House Water Filtration Filters Incoming Water Supply
Spray Away
Outside Spigot
Upgraded Variable Speed Water Pump
Water Hose on Power Wind Reel
Water Management Bay Water Fill and Sewage Dump Controls in One Bay
Single Bowl Kitchen Sink in Kitchen Includes Single Lever Faucet

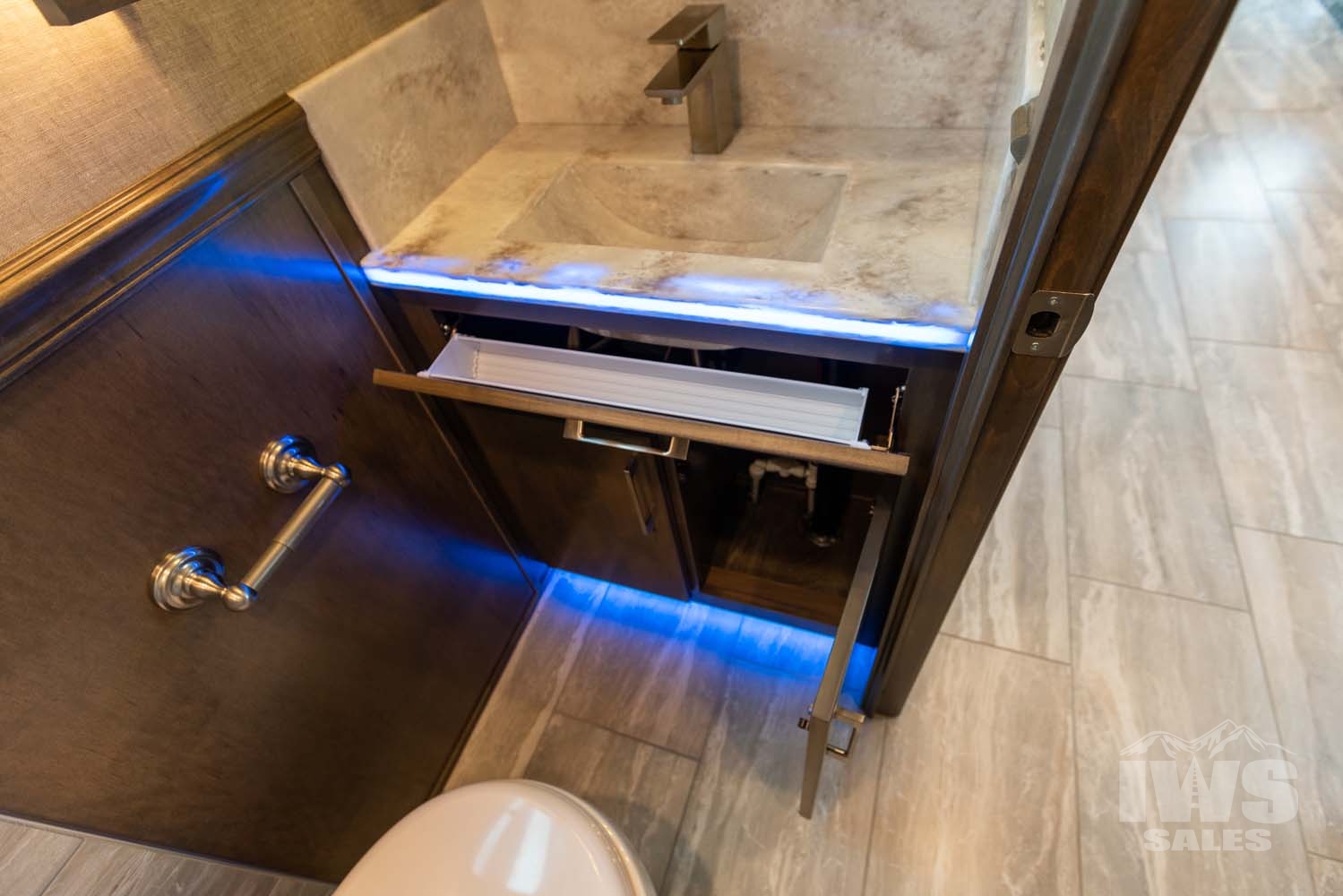

Solid Surface Integrated Sink In Toilet Room Vanity (Raise to 33″)
Aqua Hot Heat Exchanger in Sewage Tank Compartment
Heating Strips On Black and Gray Holding Tanks (2) Per Tank

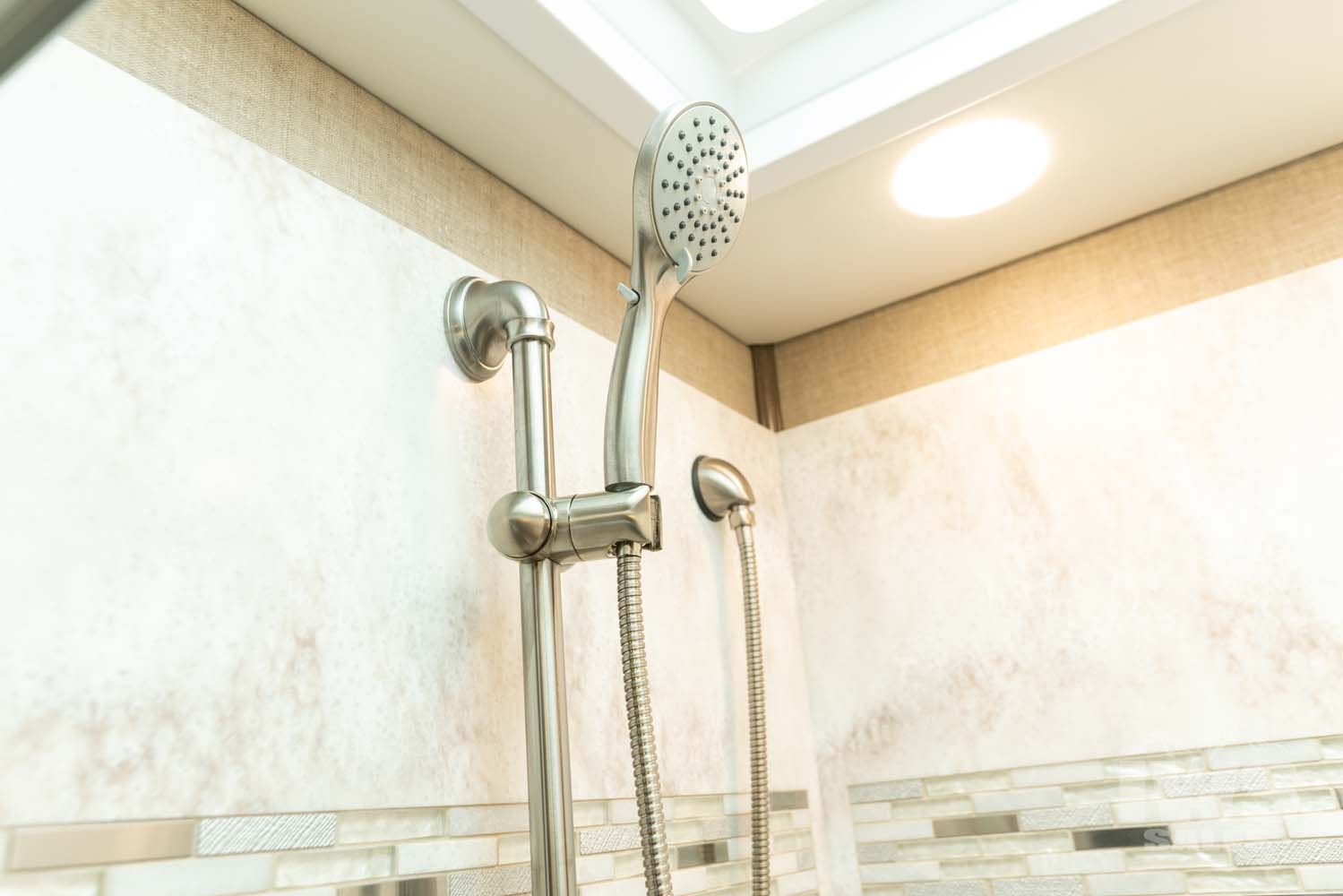

Solid Surface Shower with Shelves for Shampoo and Soaps

Added Water system Options

Tiled Wainscoting Behind and Around Toilet Area (Priced Per Toilet) **IWS Added Option
Flo-Jet Macerator Sewage System in Lieu of 4″ Gravity Drain**IWS Added Option
Spray Ceramic Temp Coating in Water Management and Sewage Compartments**IWS Added Option

Standard Mechanical Features

Aqua Hot 450D Hydronic Heater (2) Zone Heating Continuous Hot Water (Engine Preheat/Heat Option Included)
Mount Aqua Hot Forward of Coach
Pure Sine 3000 Watt Hybrid Inverter / Charger with Auto Gen Start Feature
(12.5kW) RV-QD-12500 Cummins Onan Diesel Generator
Surge Guard for Incoming Electrical Power With Digital Monitoring Panel
(3) 15,000 BTU Air Conditioners with Chill Grill & Heat Pumps
Power Retractable 50 Amp Shore Cord
(36 Ft) Deluxe Tinted Max-Aire Roof Vents in Lieu Of Standard Roof Vents Vent Includes 1 Remote Control. Allows Vent to be open when Driving
50 Amp Electrical Outlet Located at the Rear of Coach
110 / USB Outlet by each Nightstand
Premium 12 Volt Multiplex Wiring in Lieu of Rocker Switches Includes Bluetooth Capable Control with your Smart Phone or Tablet

Added Mechanical Options

(3) – 175 Watt Solar Panel System **IWS Added Option
Upgrade to (2) 260 ah Lithium Batteries in Lieu of Standard (2) 8D Batteries **IWS Added Option
Additional Lithium Battery **IWS Added Option
Additional 3000 Watt Hybrid Inverter – Used to Run Center AC **IWS Added Option
Add Additional 110 Outlet in Kitchen Counter (2) total **IWS Added Option
Add Additional 110 Outlet in Bathroom Vanity Counter (2) total **IWS Added Option
110 Outlet Installed in Street Side Rear Compartment **IWS Added Option
Color Changing LED Counter Top Edge and Toe Kick Lighting (Color Programable) Kitchen – Bath – Toilet Room – If in Floorplan **IWS Added Option

Standard Electrical Features

Garmin GPS RV Navigation System
AM/FM In Dash Stereo System with Bluetooth and XM Ready
Back-up Monitor & Camera (Standalone system not tied to Stereo)
Side Bullet Cameras (Turns on with Blinkers)
Sound bar with Sub-Woofer Wireless Streaming used on Living Quarters TV
360 Degree UHF/VHF Digital TV Antenna with Booster
Use Screen Mesh instead of Glass Insert for Bedroom AV Cabinet Door.
Entertainment System in Bedroom Blu Ray / DVD Player Satellite Ready
In-Wall Outside Entertainment Center 43″ TV Bluetooth Soundbar on Pivoting and Extending Arm
Winegard Trav’ler Direct TV SWM3 HD Stationary Satellite – (Receivers Not Included)
Pre Wire for In Motion Satellite
Winegard Connect 2.0 Wifi and 4G Range Extender (requires subscription)

Added Electrical Options

IWS Streaming Package – HDMI Port – 110 Outlet**IWS Added Option
Install 110 Outlet in Opposite Side of AV Cabinet**IWS Added Option
43″ LED Smart HD TV LCD in Living Quarters **IWS Added Option
TV Mounted Over Entry Door On Morryde TV1-0877 Swing Arm Mount**IWS Added Option
43″ LED Smart TV Upgrade in Bedroom with Sound bar**IWS Added Option

Standard Colors Features

Std Interior Décor Package Furniture Fabric-Flooring-Bedding-Furniture and Bedding: Oasis with Castange (Brown)
Individually Selected Wall-Board / Padded Walls:Quartz
Furniture Fabric Color: Castange
Captain Chairs Fabric Color: Castange
Cabinet Stain Color: Cape Cod
Carpet Color: Serene Still
Honed Title Flooring: Bernini Camo Matte
Counters Color: Cloud
Solid Surface Shower Color: Cloud
Back Splash Tile:

This 2024 Renegade XL comes with the IWS Advantage Package!

Advantage Package

5 years free roadside assistance.
Your motorcoach will be filled with fuel at delivery.
Your motorcoach will be filled with propane at delivery.
New Apple iPad 32GB with Cellular & WiFi Capabilities with a protective case.
Exclusive IWS video library showing you how to use all of the features of your new motor coach, preloaded onto a new iPad.
Exclusive access to the Member’s Only section of our website.
Exclusive 24 hour access to our service department, 7 days a week.
Exclusive one-on-one training on how to use, service, and maintain your new motorcoach.
Free night stay at our exclusive RV Park.

This Coachs' Floorplan

X43DB XL

This Floor plan may show optional features that are not on every unit.

Sorry, no videos at this time.

*Please note that due to changes at factory, specifications, dimensions, features, and options may change at anytime without notice*

XL Specifications
OVERALL WIDTH	100″ 1/4″
OVERALL HEIGHT (to top of AC)	12′ 10″
OVERALL LENGTH	43′
INTERIOR HEIGHT (Std)	90″
FUEL CAPACITY	120 Gallons
FRESH WATER (gal)	150 Gallons
BLACK (gal)	75 Gallons
GRAY (gal)	75 Gallons
GVWR	58,000 lbs
Towing Capacity	40,000 lbs

Due to continued improvement, changes in suppliers and design; features, options, appliances, equipment, colors, material specifications, prices, and model availability are subject to change without notice.

XL

IWS Signature Series™ 2024 43' Renegade XL CA Compliant
